PRODUCT INTRODUCTION

Item number: ST-04HDC

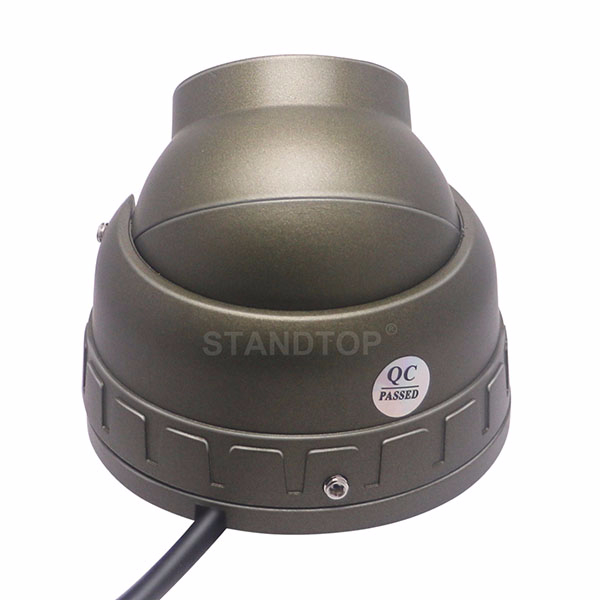

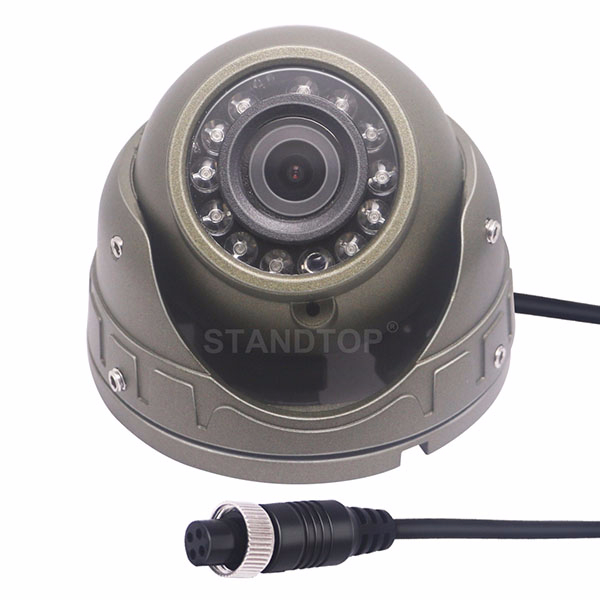

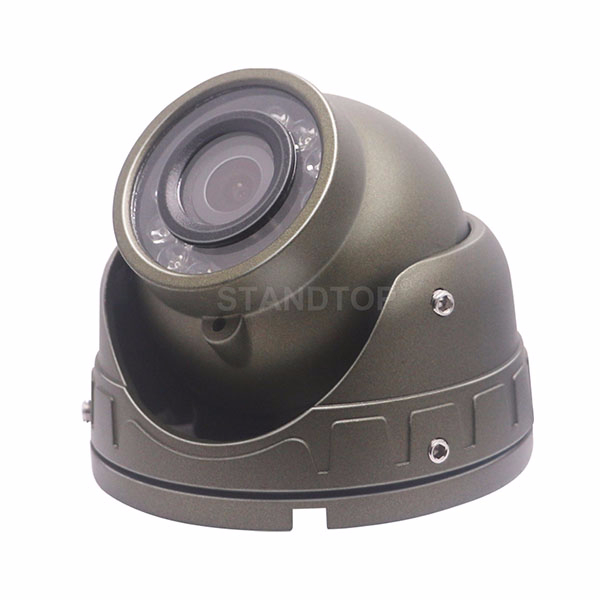

1080P AHD Medium Size Dome Camera

Specification
Image Sensor	1/3 CMOS sensor or Sony sensor optional
Resolution	720P or 1080P optional
Effective Pixels	1280(H) x 720(V)/ 1920(H) x 1080(V
TV System	PAL/NTSC
Viewing angle	120 Degree
Power supply	DC 12V
Housing material	Aluminum alloy
Waterproof Level	IP67
IR lights	12Pcs
Image	Mirror or Normal optional
Microphone	Optional
Power Consumption	＜3W
Maximum current:	＜250mA
Minimum Illumination	0.1 Lux (day), 0 Lux (with IR)
Video Output	1.0 Vp-p/75 Ohm
IR cut	Yes
Connector	4pin or RCA optional
Operating Temperature	-20℃～70℃, RH 95% MAX
Storage Temperature	-30℃～80℃, RH 95% MAX
