PRODUCT INTRODUCTION

Item number: ST-CMOS-8IR

  • HD 1080P Round Work Lamp Camera
  • HD 1080P Round Work Lamp Camera
  • HD 1080P Round Work Lamp Camera
  • HD 1080P Round Work Lamp Camera
  • HD 1080P Round Work Lamp Camera
  • HD 1080P Round Work Lamp Camera
  • HD 1080P Round Work Lamp Camera
  • HD 1080P Round Work Lamp Camera
Inquiry Now

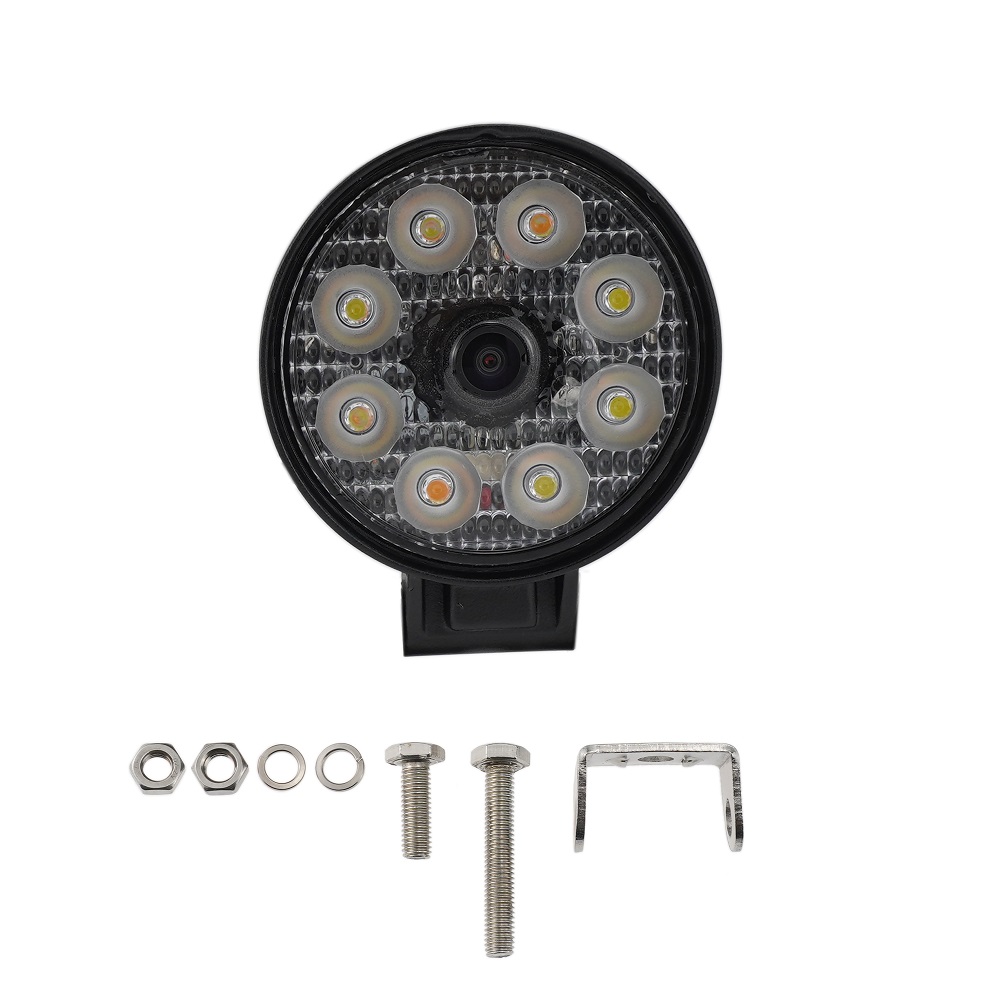

HD 1080P Round Work Lamp Camera

  Industrial vehicles and agricultural machinery often operate in less-than-ideal weather conditions. therefore, installing high-quality, reliable equipment is crucial to ensure work can be carried out even in rainy weather and at night. our ST-CMOS-8IR, a dedicated LED work light with a built-in camera, not only provides bright illumination of the work area but also monitors the situation and transmits images to the in-cab monitor.

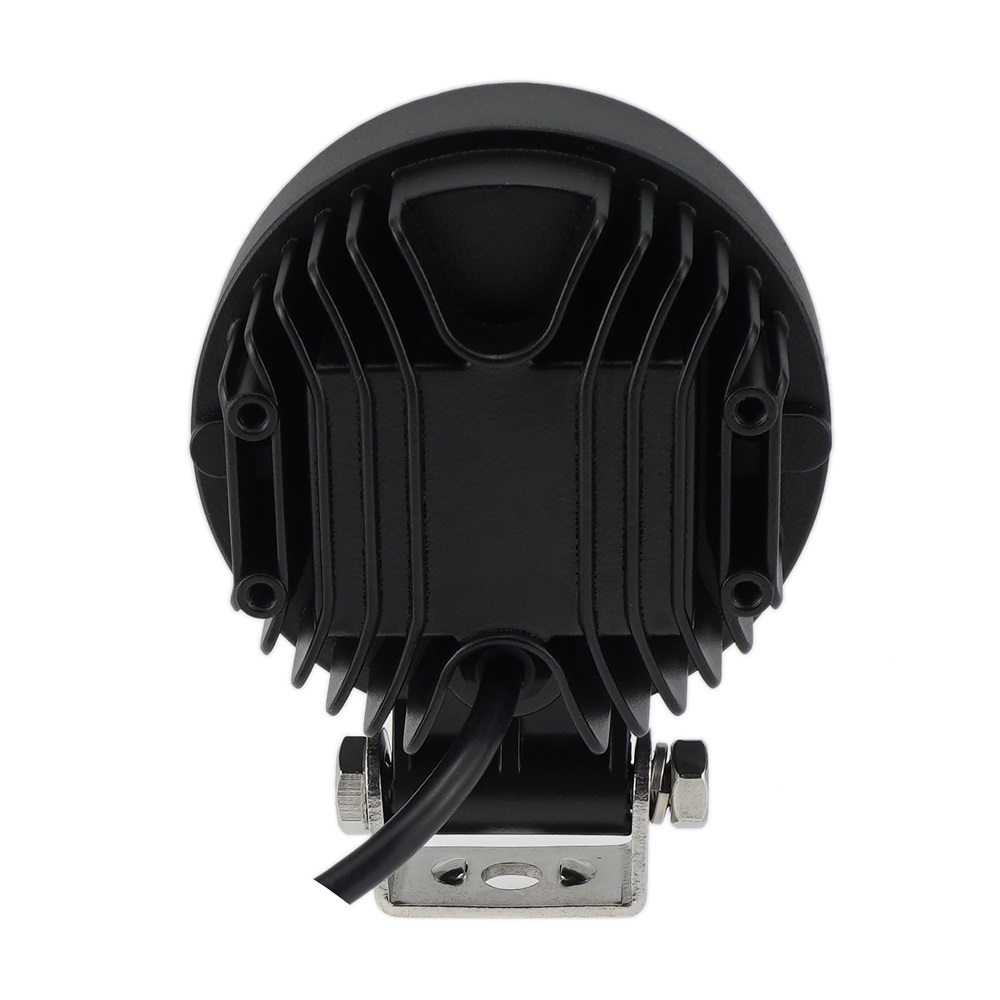

  This model features a waterproof and dustproof black metal housing. 8 LED diodes provide high-quality illumination and are equipped with a 1080P AHD camera. It supports a wide range of video, 3D noise reduction, and automatic white balance for clear image quality, fast dynamic video response, no trailing shadows, and lifelike colors, enabling video capture at dusk or at night. the dedicated work light with a built-in camera not only displays images on the monitor but also records them to a recorder



Product Features:

  • Default was single white light 6000K high beam
  • Multi light source high beam/medium light/near light three LED lights(can be customized)
  • Application for Agricultural machinery,Engineering vehicles,Tractors,Harvester trucks,Excavators,Cranes,etc

Product Parameters:

Category Parameter
Image Sensor 1/2.9" GC 2053 or 1/2.7" Sony IMX307
Effective Pixels  1920(H) x 1080(V)
TV System PAL/NTSC
Lens 2.8MM

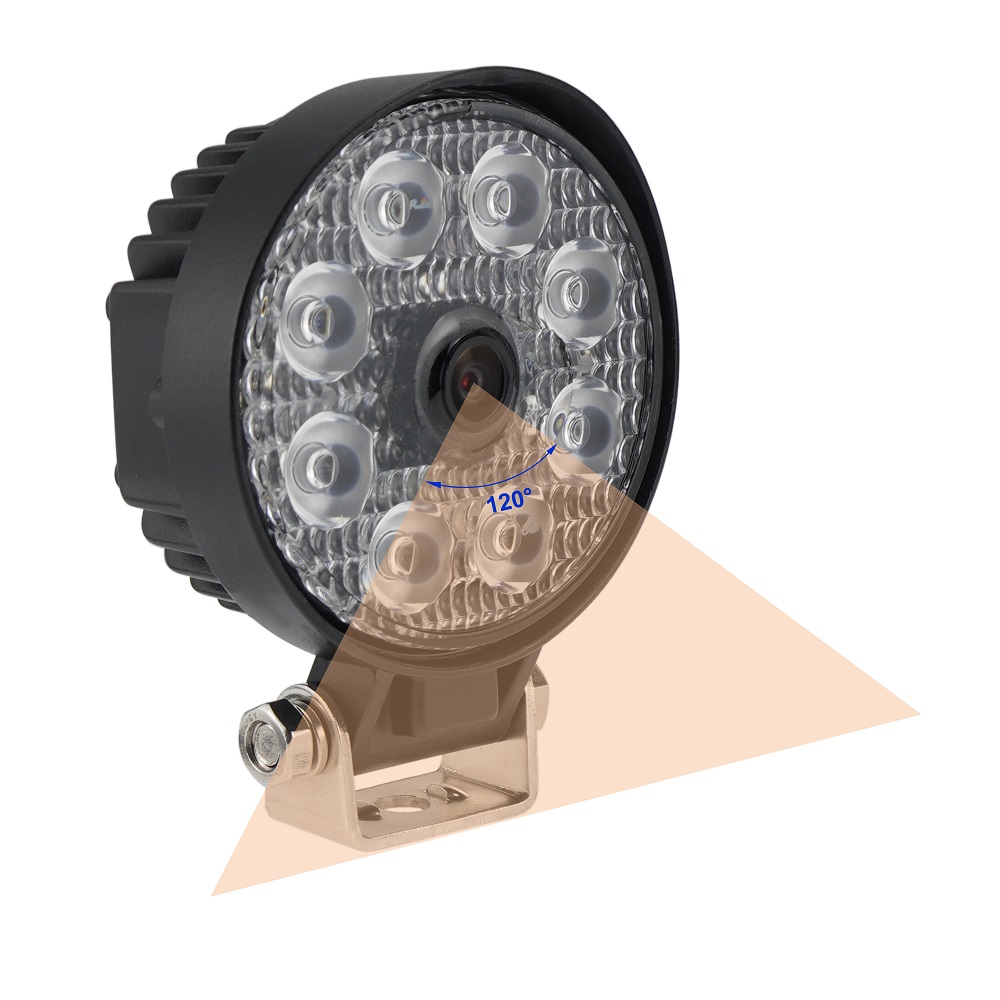

Viewing angle 120 Degree
Camera power supply DC 12V
Work light power supply  DC 10-32V
Waterproof Level IP68
IR leds 8Pcs
WDR function Optional

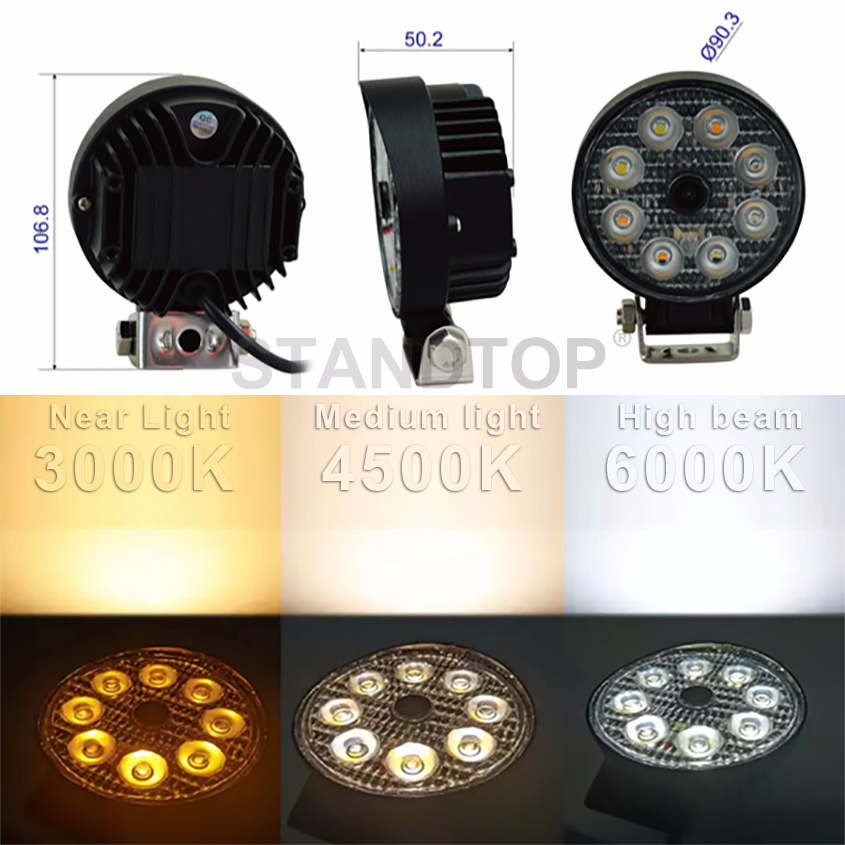

LED color temperature/light 3000K/4500K/6000K / 60 degree flood light
LED multi-color light source high beam/medium light/near light( optional)
Power consumption 2W/ night working light ≤10W
Night vision distance ≤100M
Minimum Illumination 0.1 Lux (day), 0 Lux (with IR)
Video Output 1.0 Vp-p/75 Ohm
Connector 4pin aviation connector
Operating Temperature  -30℃~70℃, RH 95% MAX

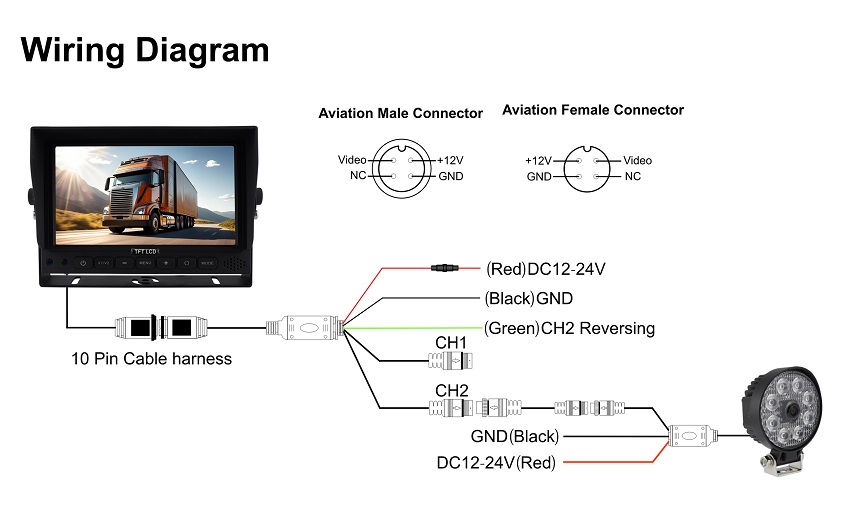

High Beam Wire Diagram:

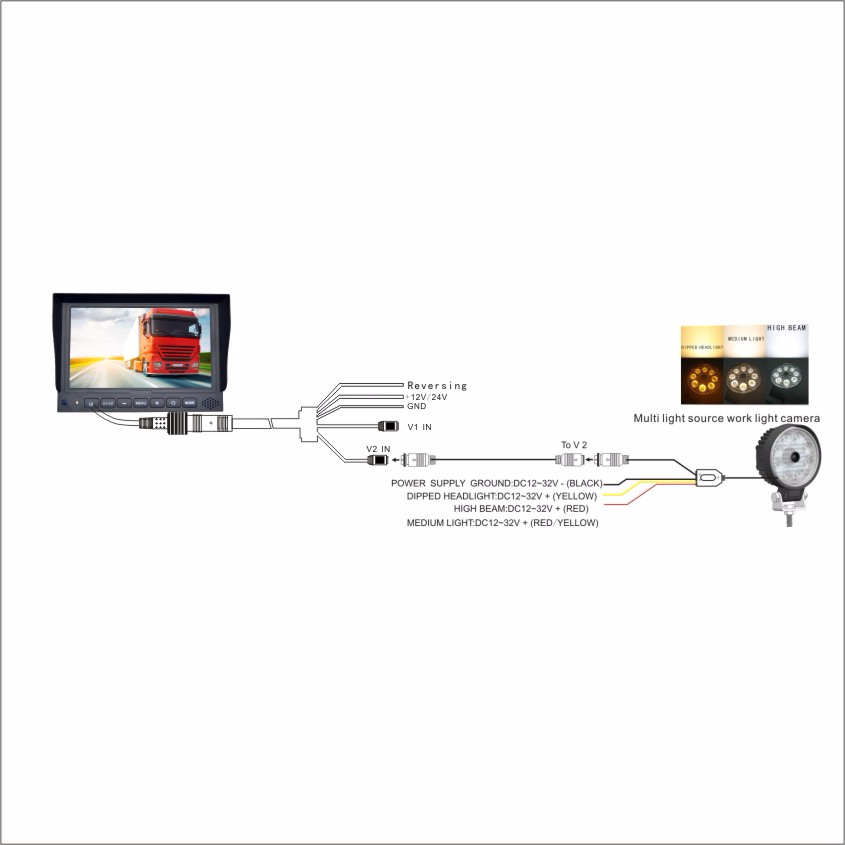

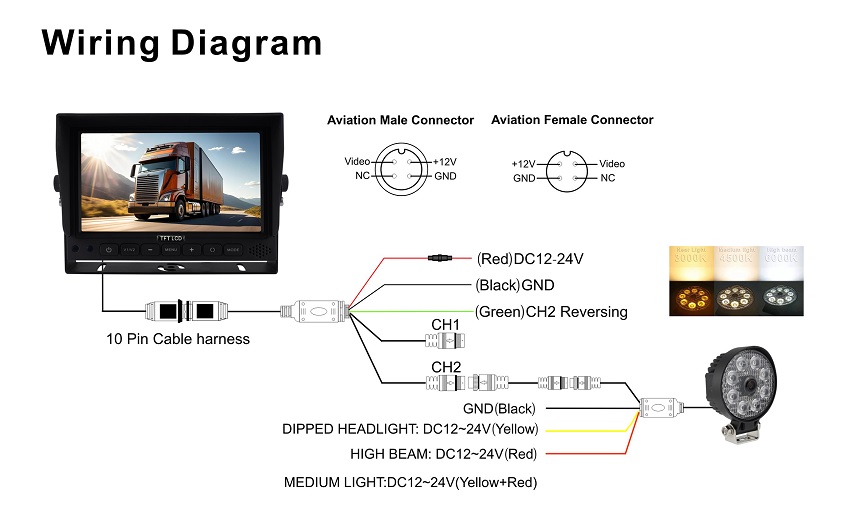

Multi Light Source Wire Diagram:



Product Applications:

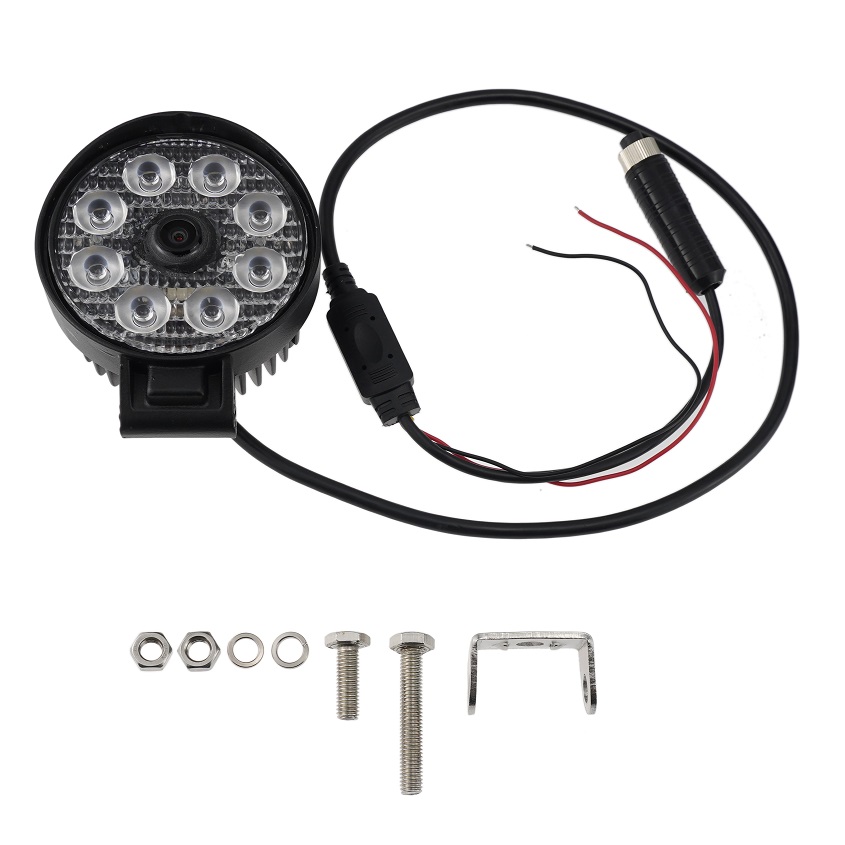

In the box:
