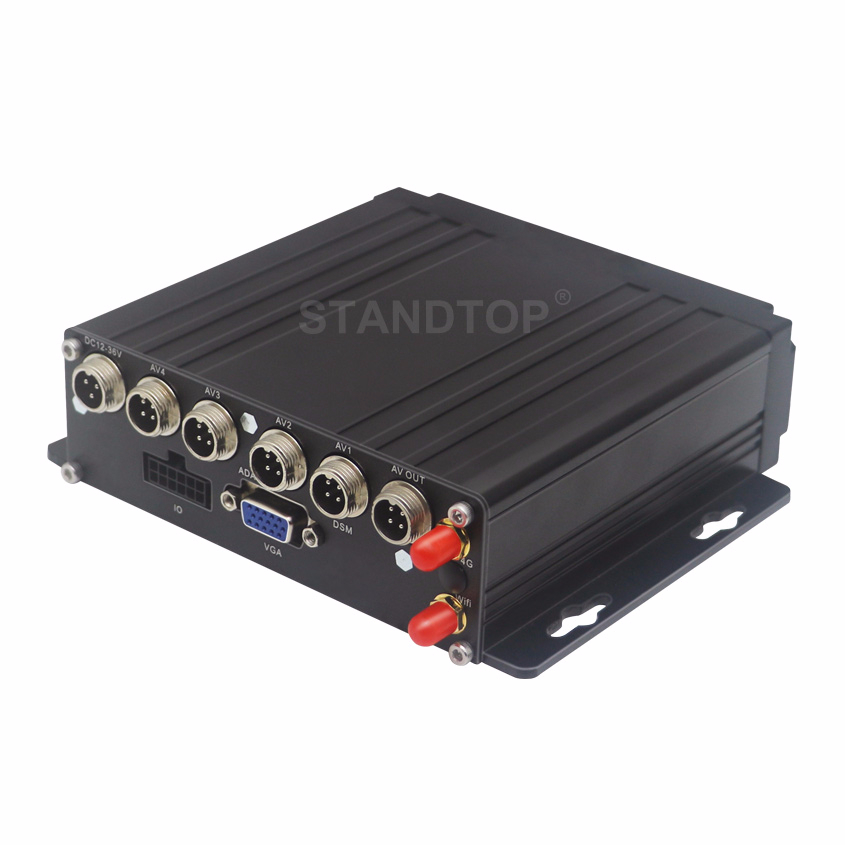

Item number: ST-AI001
Built-in high performance chipset
H.264/H.265 main profile coding system
4 channels 1080P/720P AHD video recording
4 channels audio recording

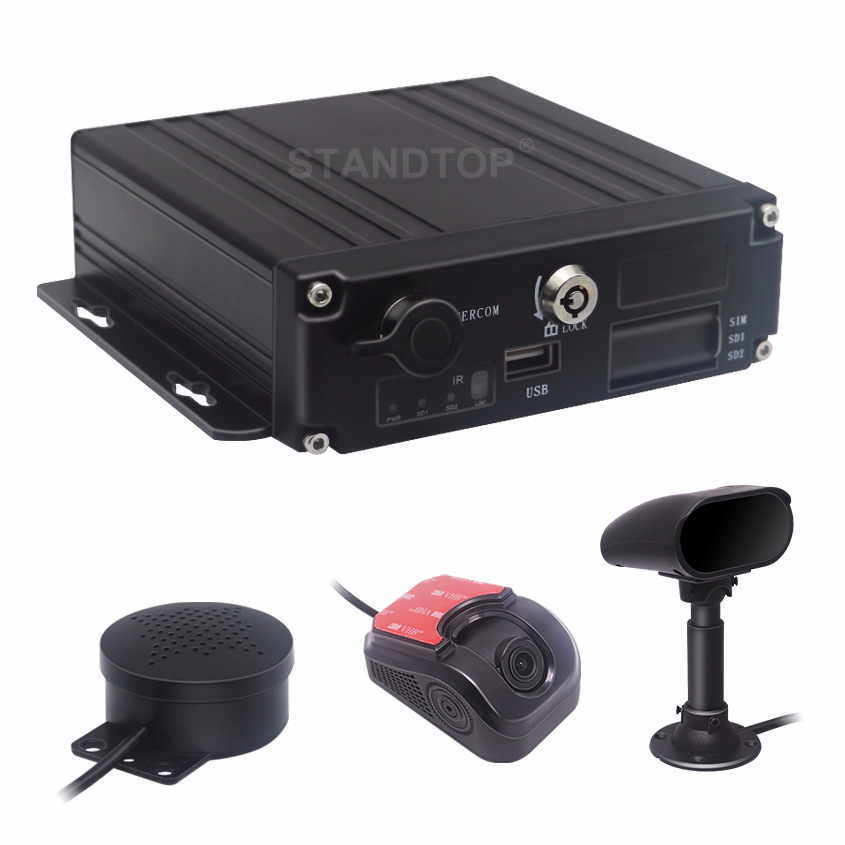

Built in ADAS+DSM AI function BSD(optional)
Built in GPS, Wifi
Max support 256GB SD carder
3G/4G,Optional
If 3G/4G or Wifi, will match CMS fleet management platform
Or you can building in your owner platform
| TECHNICAL SPECIFICATION | ||||
| Model | 4 Channel AI Mobile DVR with ADAS DSM Functions | |||
| Main Processor | HI3520DV400/ 98323 | |||
| Operating System | Embedded Linux | |||
| System language | Chinese/English, others (Customized) | |||
| Video compression format | H.264 /H.265 | |||
| Password Security | 2Levels:Administrator or User | |||
| Operating Interface | GUI, Support mouse and remote control | |||
| Video | Video input | 4 channels, 1080P/720P AHD video input, aviation interface, 1.0Vp-p, 75Ω | ||
| Video output | 1 composite video output +VGA output, 1.0Vp-p, 75Ω, support 1 full screen and 4/9 split | |||
| Signal system | PAL@100 frame/s 1080P NTSC@120 frame/s 1080P | |||
| Image display | Single/QUAD display optional | |||
| Video Resolution | Support 1080P, 720P, D1, HD1, CIF optional | |||
| Maximum support 4 channels 1080P or 720P | ||||
| Video quality | Class 1-8 optional | |||
| Recording Method | Default automatic recording, support ignition recording, manual recording, alarm recording, etc. | |||
| Audio | Audio input | 4 channels, aviation head interface, external call handle input | ||
| Audio output | 1 way, front headphone jack output and rear extension interface cable output | |||
| Compression format | G.726 compression format, rate 8KB/s | |||
| Storage Size | 1GB per hour (1080P) | |||
| 0.5GB per hour (720P) | ||||
| Alarm input | 4 digital inputs | |||
| Alarm Output | 2 -way switch output, linked audible and visual alarm, oil and power off, etc. | |||
| Communication interface (choose one) | Support externally connected devices (such as oil sense, TTS, GPS, ADAS, DSM, advertising LED screen, etc...) | |||
| 1 way 485 interface, expandable PTZ | ||||
| Wireless transmission | Support built-in 3G wireless transmission function, WCDMA, CDMA2000, | |||
| TD-SCDMA compatible GPRS, EDGE | ||||
| Built-in 4G wireless transmission function, TDD-LTE, FDD-LTE | ||||
| Positioning | Support built-in GPS/BD module, can report to the department standard platform | |||
| Disk | SD card | Max 256G | ||
| Upgrade method | USB disk/Wireless network/SD card | |||
| FTP remote automatic upgrade | ||||
| Storage method | Exclusive proprietary bare disk storage method | |||
| AI | ADAS | Lane departure warning | ||
| Pedestrian detection warning | ||||
| Vehicle distance detection and warning | ||||
| DSM | Smoking detection alarm | |||
| Call detection and alarm | ||||
| Face loss detection alarm | ||||
| Closed eyes detection alarm | ||||
| Fatigue driving detection alarm | ||||
| Lens occlusion detection | ||||
| Video playback | Video search | Search video data by recording time, recording method, etc. | ||
| Replay | Maximum support 4-channel synchronous playback, pause, | |||
| fast forward, fast rewind | ||||
| Support 2, 4, 8, 16 times fast forward or backward | ||||
| Power Supply | Power management | Adaptive wide-range power input, with protection functions,such as overload, undervoltage, short circuit, reverse connection, etc. | ||
| Support timer switch, delay shutdown function | ||||
| Power Input | DC:+10V ~ +36V | |||
| Power output | +12V@2A，+5V@1A | |||
| Power consumption | Normal working state <5W (without peripherals) | |||
| Others | Size | Include security cover 153*135*42MM | ||
| Net weight | 550g | |||
ADAS(Advanced Driving Assistance System)include:
DSM(Driver Status Monitor)include:
CMS V6 Software and mobile APP fleet management platform:
