PRODUCT INTRODUCTION

Item number: ST-AI003

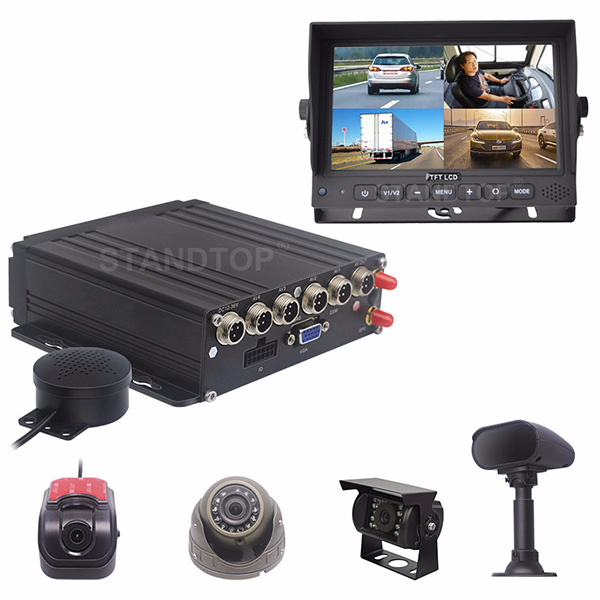

4 Channel AI Mobile DVR with ADAS DSM Kits

1 x 7" HD 1080P Monitor
1 x 4CH SD Carder Mobile DVR
1 x Forward-facing 1080P HD ADAS camera
1 x Driver-facing 1080P HD DSM camera
1 x Dome 1080P HD mirror camera
1 x Rear 1080P HD mirror image camera
1 x Buzzer

SD carder mobile DVR:
Built-in high performance chipsets
H.264 main profile coding system
4 channels 1080P/720P AHD video recording
4 channels audio recording
Built in GPS, Wifi
Max support: 1x256GB SD Carder
3G/4G,Optional
If 3G/4G or Wifi, will match CMS V6 fleet management platform
Or you can building in your owner platform

HD Camera:

1080P or 720P optional
Different Camera models optianl
WDR function for Forward-facing ADAS camera optional

Extension cable:

Normal match with 2 x 5M + 1x15M 4pin waterproof cable
Different cable size and quantity optional

TECHNICAL SPECIFICATION
Model			4 Channel AI Mobile DVR with ADAS DSM Kits
Main Processor			HI3520DV400/ 98323
Operating System			Embedded Linux
System language			Chinese/English, others (Customized)
Video compression format			H.264 /H.265
Password Security			2Levels:Administrator or User
Operating Interface			GUI, Support mouse and remote control
Video	Video input		4 channels, 1080P/720P AHD video input, aviation interface, 1.0Vp-p, 75Ω
	Video output		1 composite video output +VGA output, 1.0Vp-p, 75Ω, support 1 full screen and 4/9 split
	Signal system		PAL@100 frame/s 1080P NTSC@120 frame/s 1080P
	Image display		Single/QUAD display optional
	Video Resolution		Support 1080P, 720P, D1, HD1, CIF optional
			Maximum support 4 channels 1080P or 720P
	Video quality		Class 1-8 optional
	Recording Method		Default automatic recording, support ignition recording, manual recording, alarm recording, etc.
Audio	Audio input		4 channels, aviation head interface, external call handle input
	Audio output		1 way, front headphone jack output and rear extension interface cable output
	Compression format		G.726 compression format, rate 8KB/s
Storage Size			1GB per hour (1080P)
			0.5GB per hour (720P)
Alarm input			4 digital inputs
Alarm Output			2 -way switch output, linked audible and visual alarm, oil and power off, etc.
Communication interface (choose one)			Support externally connected devices (such as oil sense, TTS, GPS, ADAS, DSM, advertising LED screen, etc...)
			1 way 485 interface, expandable PTZ
Wireless transmission			Support built-in 3G wireless transmission function, WCDMA, CDMA2000,
			TD-SCDMA compatible GPRS, EDGE
			Built-in 4G wireless transmission function, TDD-LTE, FDD-LTE
Positioning			Support built-in GPS/BD module, can report to the department standard platform
Disk		SD card	Max 256G
		Upgrade method	USB disk/Wireless network/SD card
			FTP remote automatic upgrade
		Storage method	Exclusive proprietary bare disk storage method
AI		ADAS	Lane departure warning
			Pedestrian detection warning
			Vehicle distance detection and warning
		DSM	Smoking detection alarm
			Call detection and alarm
			Face loss detection alarm
			Closed eyes detection alarm
			Fatigue driving detection alarm
			Lens occlusion detection
Video playback		Video search	Search video data by recording time, recording method, etc.
		Replay	Maximum support 4-channel synchronous playback, pause,
			fast forward, fast rewind
			Support 2, 4, 8, 16 times fast forward or backward
Power Supply		Power management	Adaptive wide-range power input, with protection functions,such as overload, undervoltage, short circuit, reverse connection, etc.
			Support timer switch, delay shutdown function
		Power Input	DC:+10V ~ +36V
		Power output	+12V@2A，+5V@1A
		Power consumption	Normal working state <5W (without peripherals)

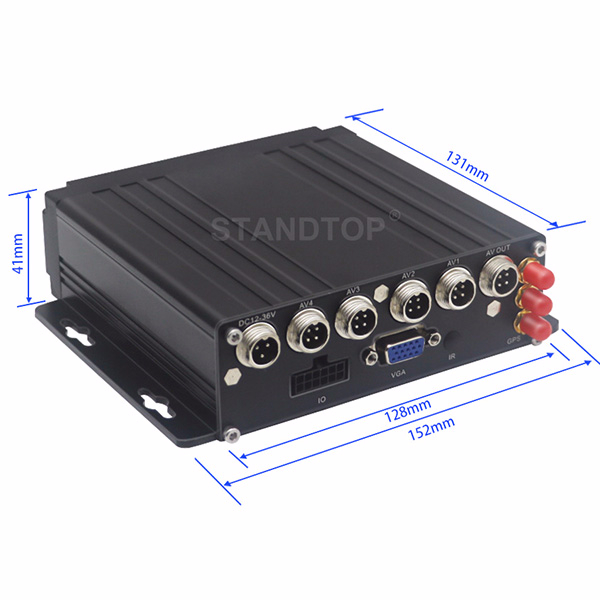

Others		Size	Include security cover 15313542MM
		Net weight	550g

ADAS(Advanced Driving Assistance System)include:

DSM(Driver Status Monitor)include:

CMS V6 Software and mobile APP fleet management platfrom

Vehicle Install Postion exampled:
