AHD 1080P Side Camera for Safe Driving & Blind Spot Monitoring

PRODUCT INTRODUCTION

Item number: ST-C06A

HD 1080P Front Rear Side View Camera

Products Overview:

The AHD 1080P side view camera delivers crystal-clear images for safer driving and parking,designed with a wide viewing angle and AHD high-definition sensor, it reduces blind spots and ensures visibility in all weather conditions,IP69K waterproof housing protects the camera from rain, dust, and vibration, making it ideal for trucks, Vans, RVs, trailers, and heavy-duty vehicles,with infrared night vision, this camera provides reliable performance day and night.

Key Features:

Full HD 1080P Resolution: Sharp, real-time imaging for confident maneuvering
Install positon: It can be installed on Front/Rear/Side
Wide-Angle Lens: Horizontal angle 145-150 degree
Night Vision: 5pcs Infrared LEDs ensure visibility in low-light conditions
IP69K Waterproof Rating: Withstands rain, dust, and pressure washing
Shockproof Design: Vibration-resistant for rugged environments
Wire harness: M12 4-pin avation connector, double-shielded pure copper wire
Universal Compatibility: Works with AHD video signal monitors and DVR systems
Approvals & Certification: E-Mark, CE

Product Parameters:

Category	Parameter
Image Sensor	1/2.9" CMOS Sensor
Resolution	AHD 1080p
Effective Pixels	1920(H) x 1080(V)
TV System	PAL/NTSC
Viewing angle	145-150 Degree(Horizontal angle)
Power supply	DC 12V , 24V optional
Waterproof Level	IP69K
IR lights	5Pcs
Image	Mirror or Normal optional
Power Consumption	＜3W
Maximum current	＜250mA
Minimum Illumination	0.1 Lux (day), 0 Lux (with IR)
Video Output	1.0 Vp-p/75 Ohm
IR cut	Yes
Connector	4pin aviation
Operating Temperature	-30℃～70℃, RH 95% MAX

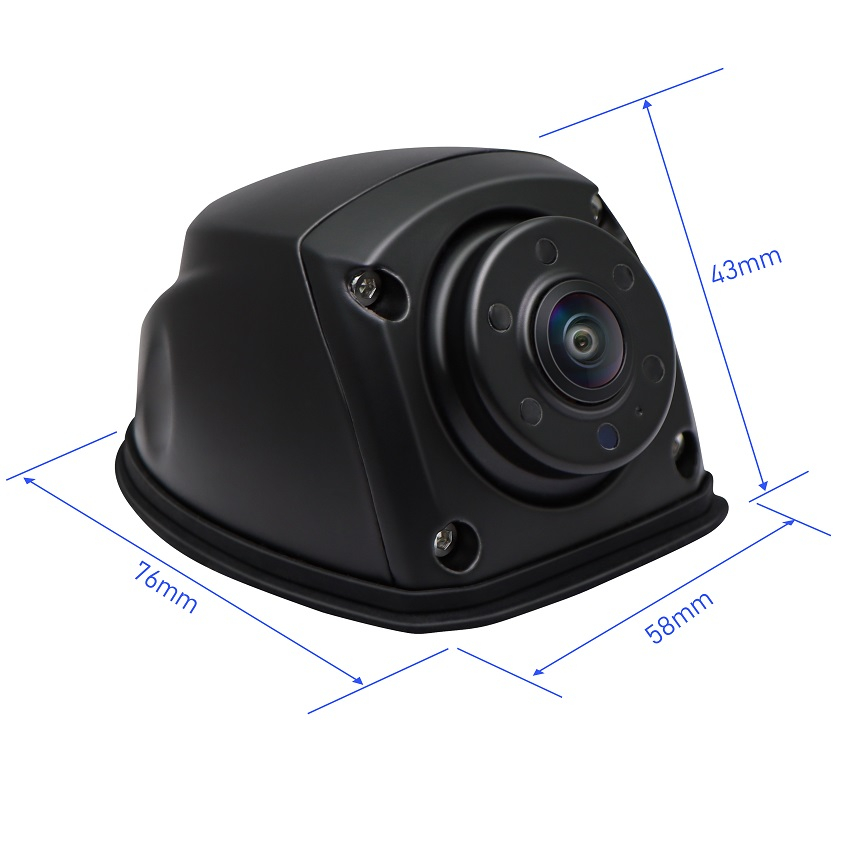

Camera Size:

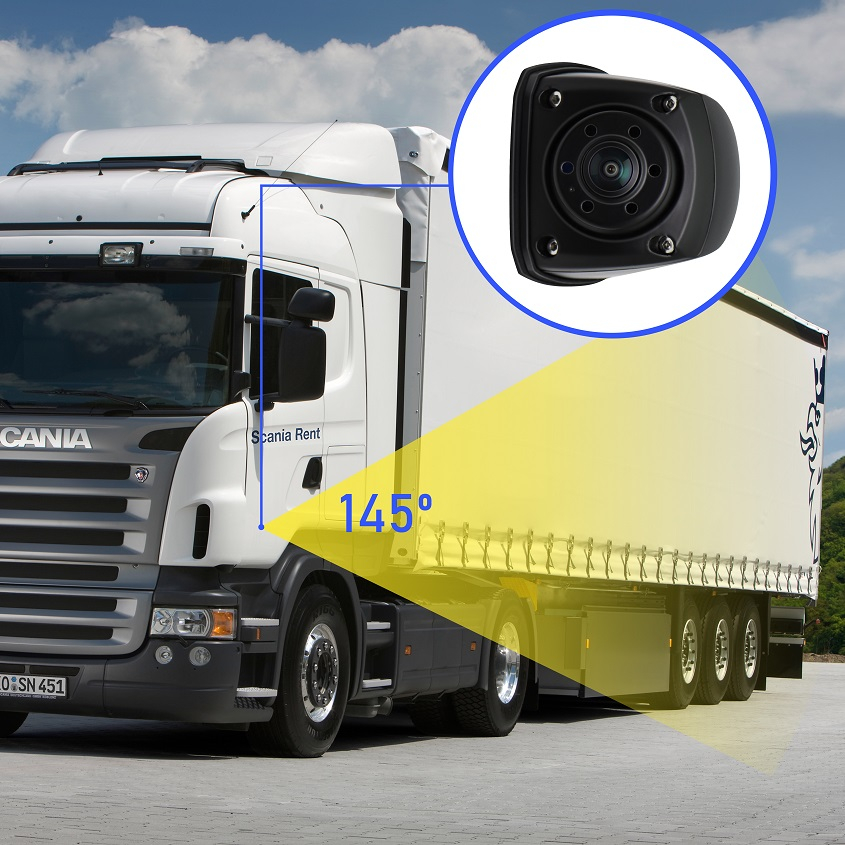

Product Applications:

Perfect for Commercial vehicles, RVs, Trucks, Vans, and Trailers, offering enhanced blind spot monitoring and side protection on the road.

If you also like Starlight night vision for the camera?

Yes, we also have starlight version, without IR leds, the sensor have GC 2053 or Sony IMX307, same wide angle view Horizontal angle 145-150 degree, you can ask us for more details.
