1080P Heavy‑Duty Dual Side Mount Camera – Rugged HD Side‑View Safety Solution

PRODUCT INTRODUCTION

Item number: ST-39DLC, AHD 1080P Heavy-Duty Dual Side Mount Camera

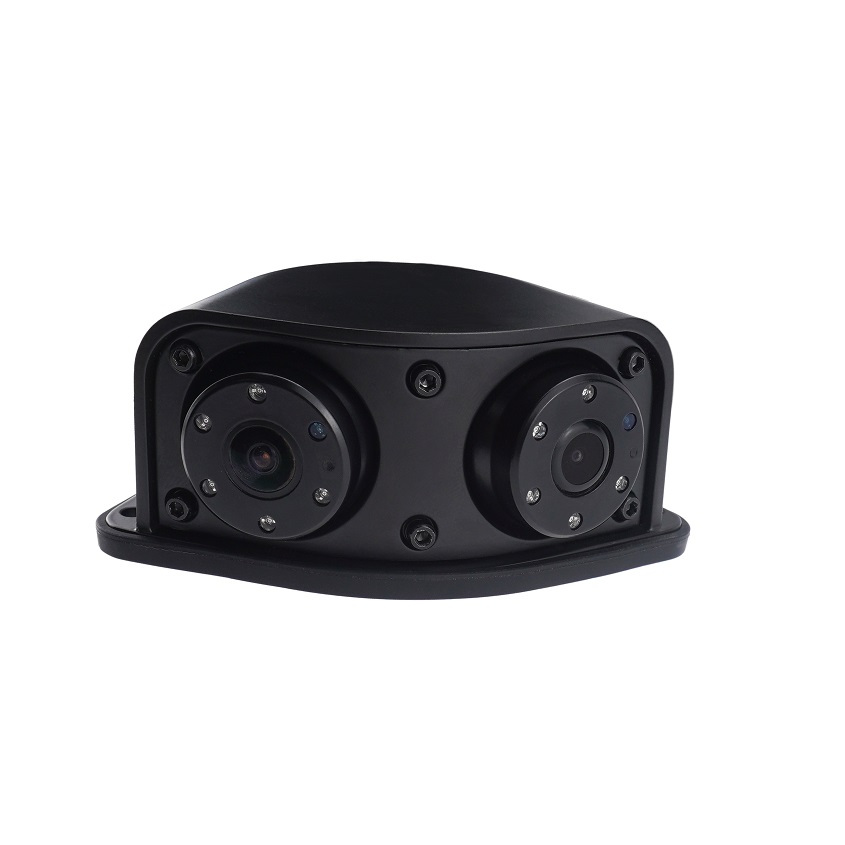

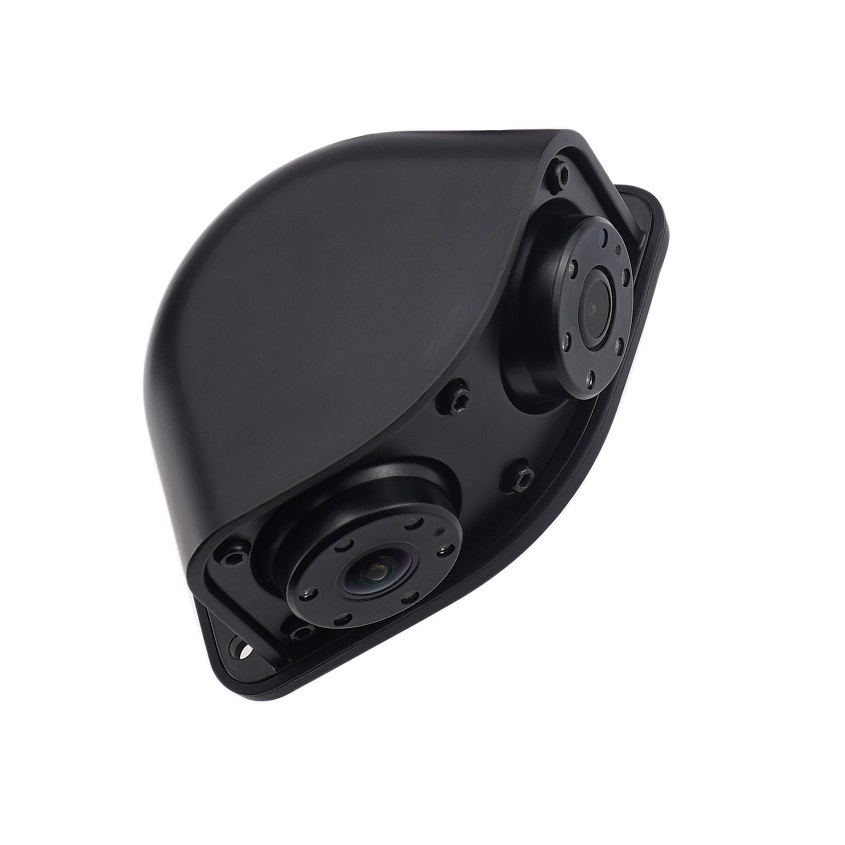

1080P Heavy-Duty Dual Side Mount Camera

Overview:

The side-view dual-lens camera, equipped with two independent cameras, providing a wide-angle view to cover the entire blind spot on the side of the vehicle,1080p high resolution with Sony IMX307 sensor,IP69K waterproof level,designed to eliminate blind spots in heavy trucks, buses, RVs, and commercial vehicles. It is typically used in conjunction with electronic rearview mirror systems or in-cab monitors.

Key Features:

Resolution: 1080P Full HD
Durability: IP69K weatherproof Rating
Mounting: Dual Side Mount Design
Low Light: Infrared Night Vision
WDR function: Wide Dynamic Range

Product Specs:

Category	Parameter
Image Sensor	1/2.7" Sony IMX307
Mounting Type	Side Mount
Casing Material	Zinc alloy
Resolution	1920(H) x 1080(V)
WDR function	Yes

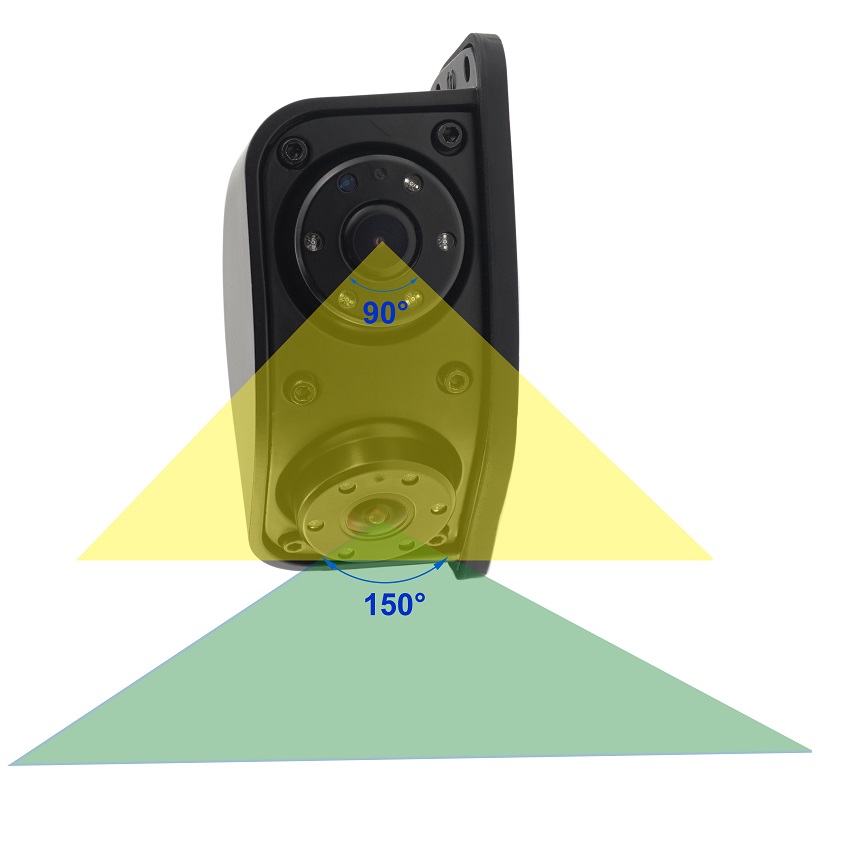

Viewing angle	90/150 Degree (H)
Power supply	DC 12V
Signal System	PAL/NTSC
Waterproof Level	IP69K
Vibration Rating:	5.9G
Minimum Illumination	0.01 Lux
Number of IR LEDs:	10 (5 per camera)
Connection Type	2 x 4 Pin aviation
Cable Length	2 x 60CM
Wired or Wireless	Wired

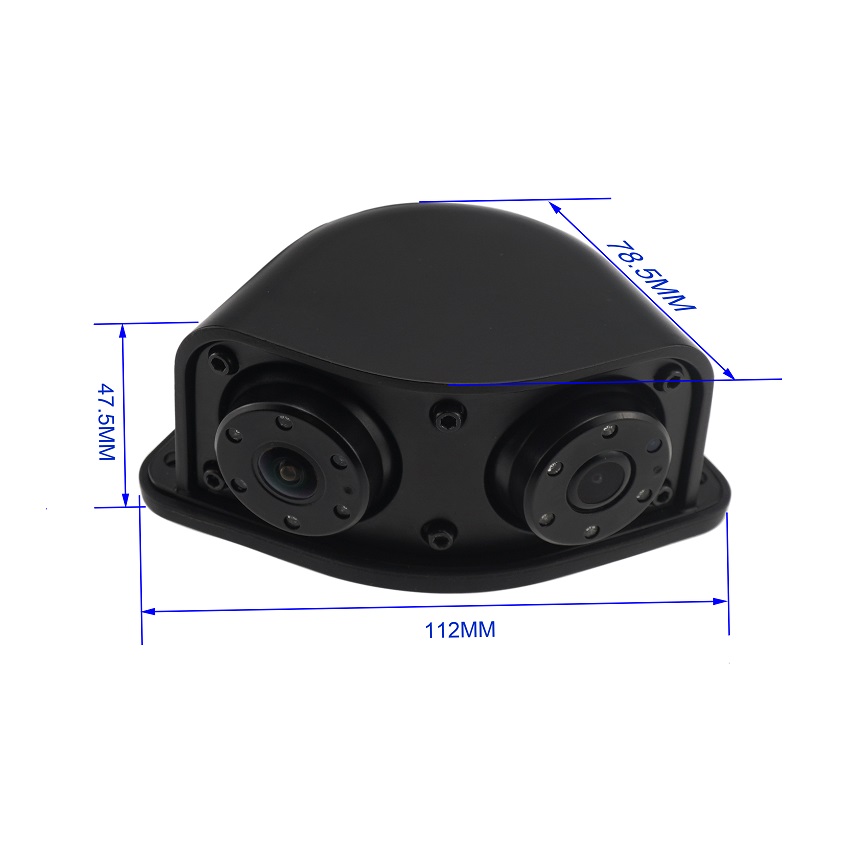

Dimensions	112mm x 78.5mm x 47.5mm
Weight	0.40kg

More Details:

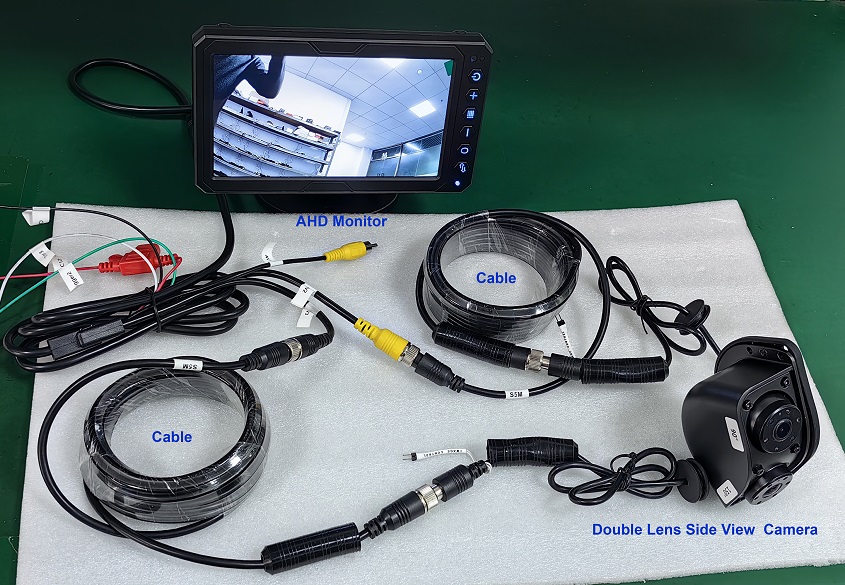

a. It works with electronic rearview mirror monitors together, such with the 7" ,10.1" ,12.3" electronic mirror monitor

b. It works with In-cab monitors, such with 7" , 9", 10.1" dash mount monitor

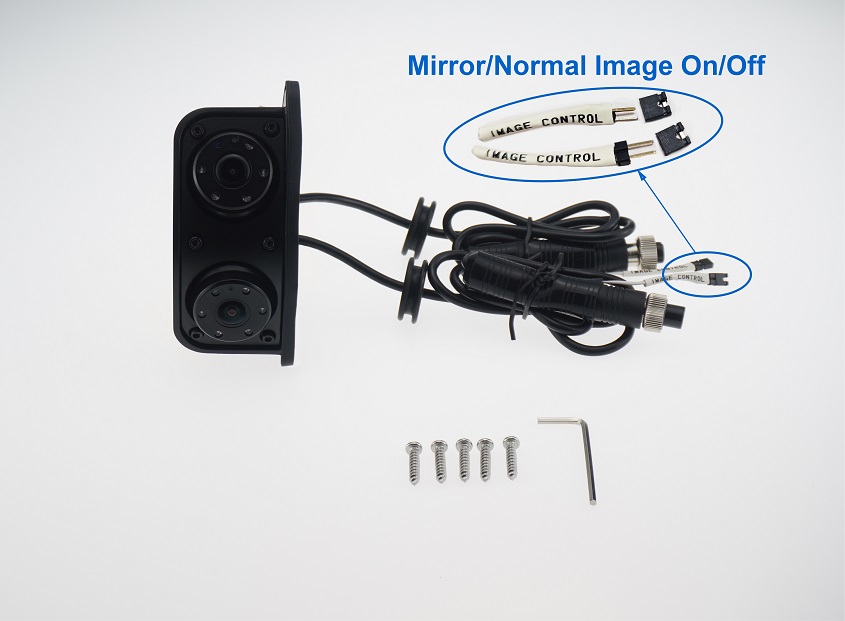

Mirror on/off switch plugs,Plug is inserted:Normal image ,Unplug: Mirror image:

Product Applications:

Perfect for trucks, buses, RVs, and commercial vehicles

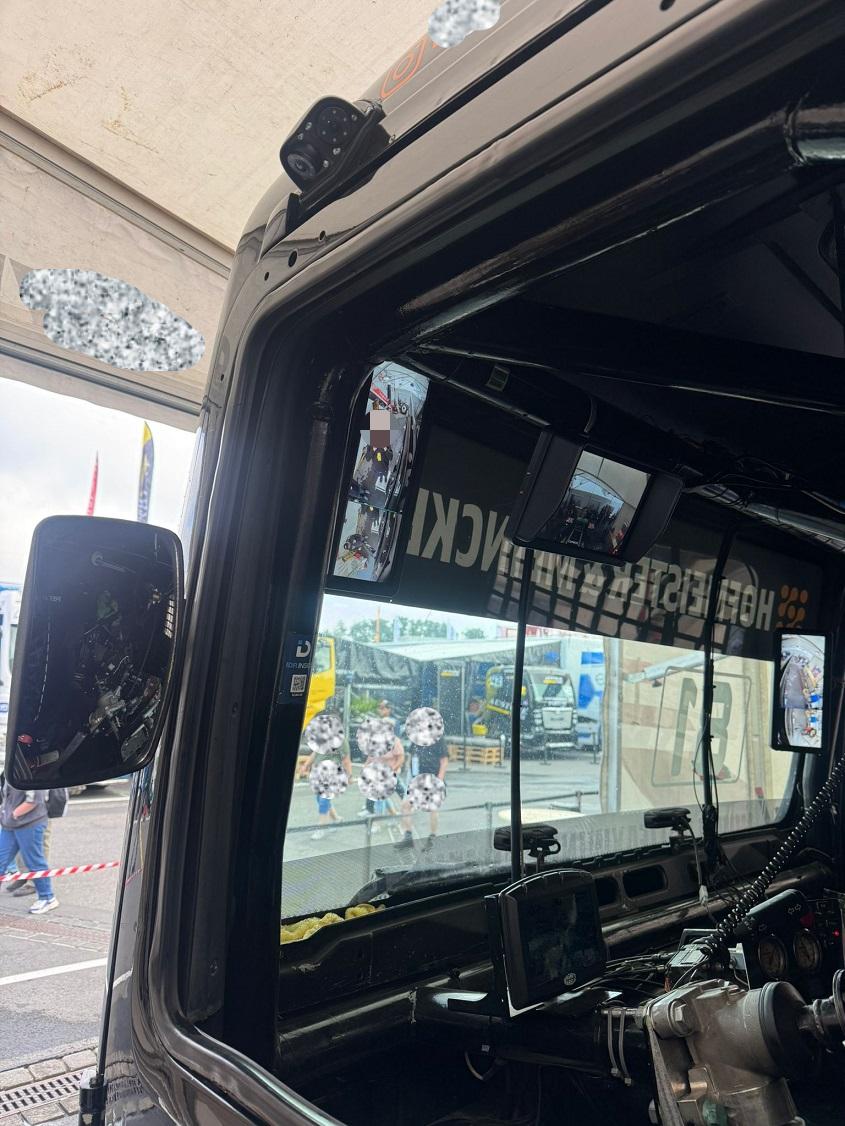

Standtop's AHD 1080P Heavy-Duty Dual Side Mount Camera install on truck, it was provided by our overseas customer by July,2025, the below image have been compressed:
